UTILITRUCK LSV SPECIFICATIONS
Year - 2026
Make Columbia Parcar
​
Model Name - Utilitruck
​
Trim Name - LSV
Additional Trim Options​
-
2+2
-
2X
-
2XL
-
4+2
-
4X​
​
Type (Primary) - Utility
​

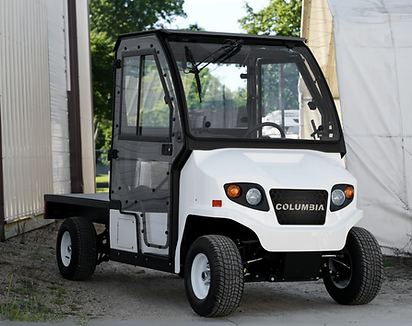

Columbia Parcar Utilitruck LSV
​
Purpose-built and highly configurable, choose from a variety of available options or customize your fleet for mission-specific capabilities. Equipped with AC-powered electric drive, high-strength metal alloy frame, and adjustable bucket seats, it can move up to four passengers at a time while carrying or towing up to 1,500 pounds. Every Utilitruck is equipped with 4-wheel hydraulic brakes, an AC powered drive system, automotive lighting, controls and steering for safety and easy operation. The Utilitruck is available as a NEV which is street legal on roads with posted speed limits up to 35 MPH.​
​
Features may include:
​
-
AC powered electric drive
-
Power steering
-
4 wheel hydraulic brakes
-
High strength metal alloy frame
-
Adjustable bucket seats
-
3 position steering wheel
-
Built-in, 110/240VAC charger
-
Wrap around tubular steel front bumper
-
Integral receiver hitch
-
Highly maneuverable
SPECIFICATIONS
Utilitruck LSV
​​
Motor
Motor Type 48-volt, AC induction, NEMA class H temperature rated
Motor Power 19 HP
Motor Controller Programmable, solid state, reduced speed reverse with diagnostic LED & calibrator interface | Rating: 450 amp
Top Speed 25 MPH
​
Battery
Battery Eight, 6 volt, 232 amp hour, 122 minute, deep cycle
Battery Charger Type On-board, micro-processor controlled, fully sealed, global, 100-230 VAC, 50/60 HZ
​
Range
Range, Up to 40 miles
​
Drivetrain
Drive System Direct drive, automotive differential, 12.62:1 drive ratio
Steering Adaptive electric power steering
​
Chassis
Chassis Front: Rhino-Tuff™ molded polymer | Mid/Rear: Aluminum
Frame Type High-strength steel channel rail “ladder-style” frame, electrostatically powder coated
​
Suspension
Front Suspension Double A-arm, independent coil spring over shock absorbers
Rear Suspension Trailing link with Panhard bar, independent coil spring over shock absorbers
​
Brakes
Brake System Type 4 Wheel hydraulic, front discs, rear drums, automatic parking brake | Motor Mode: Regenerative and pedal proportional braking with top speed limiting
​
Wheels & Tires
Front Tire 205/65-10 10-ply DOT-rated tire
Rear Tire 205/65-10 10-ply DOT-rated tire
​
Dimensions
Height Step: 12.5 in.
Ground Clearance 7.5 in.
​
Capacities
Cargo Capacity Rated: 900 lbs.
Towing Capacity 1,500 lbs.
Seating Capacity Two with up to six (optional second row seat and rear-facing seat)
​
Weights
Weight Vehicle: 1,600 lbs.
​
Lights and Safety
Lighting Dual high/low beam headlights, taillights, brake lights, self-canceling turn signals; emergency flashers
​
Features
Directional Control: Fingertip directional control selection | Accessories: Uniquely keyed in-column keyswitch; forward & reverse selector; multi-functional clear view display w/BDI; speedometer; horn; reverse warning alarm; hour meter; cup holders; storage compartments; comfort grip steering wheel; Automotive lighting package; windshield; mirrors; hard top roof; reflectors; dual DC/DC converters; 2-pt seat belts
​
Seat Type Adjustable driver seat, fixed passenger seat, covered in marine grade vinyl with armrests
